Easy and secure mating : Quick lever with safe locking
Space saving : High density solution compatible with 3U rack
Signal integrity : Improved shielding with a 360° metal housing
Flexible grounding : Possibility of different grounding structures by each port for the 5 Quadrax Layout
Fire smoke certified : Material HL3/R23 & HL3/R22 according to EN 45545-2
4 layouts available : 29 pos / 41 pos / 51 pos / 5 Quadrax
Key features and benefits
Description

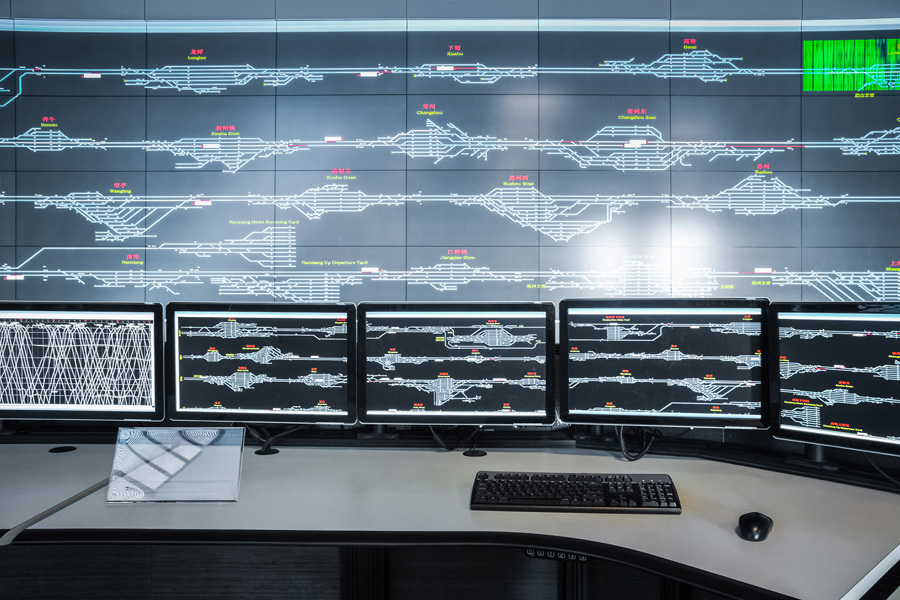

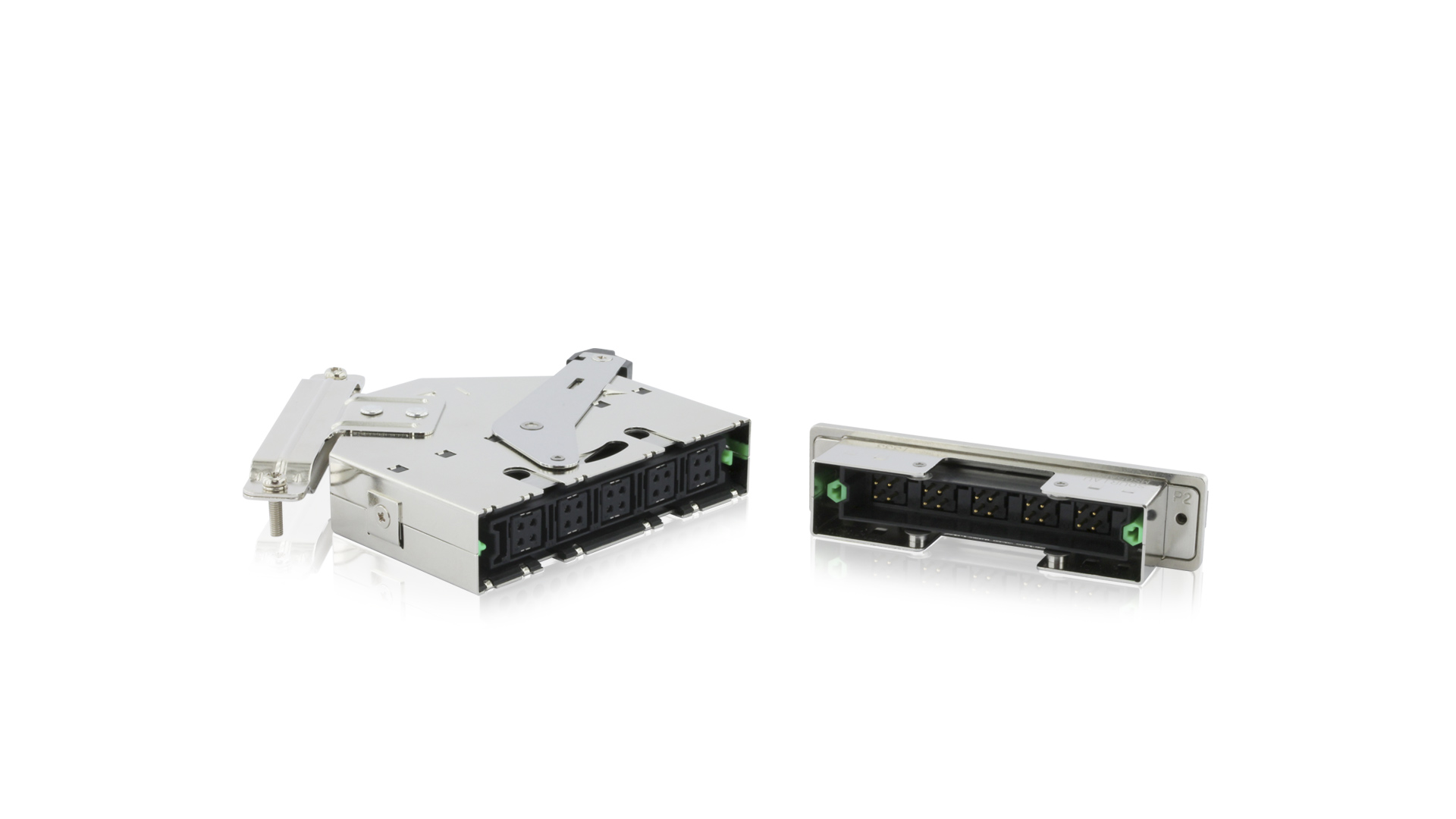

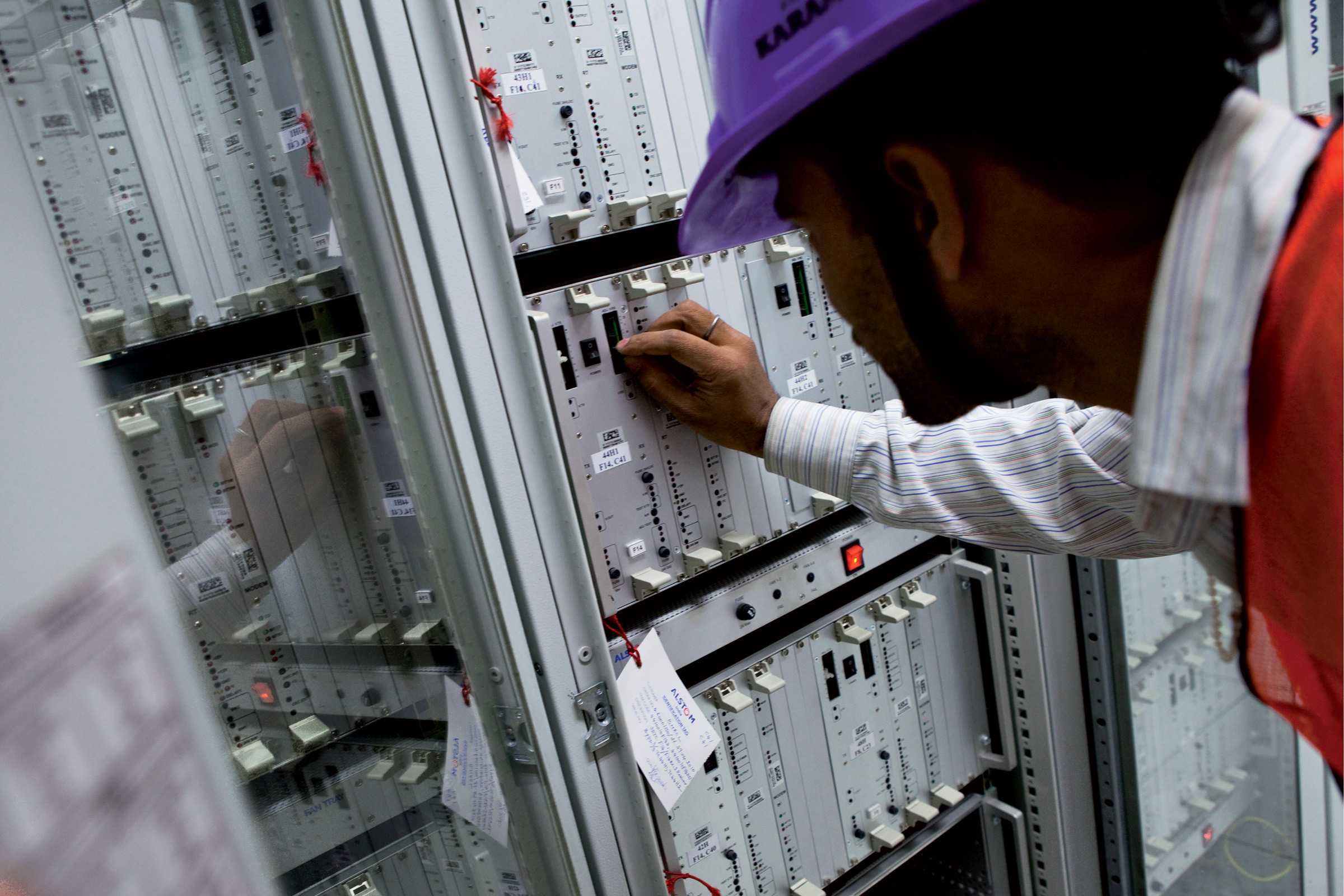

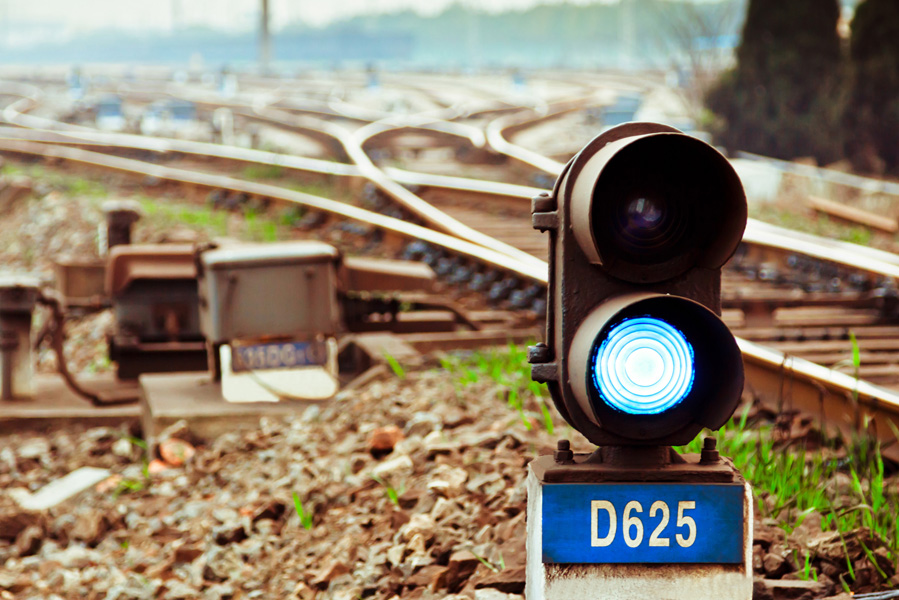

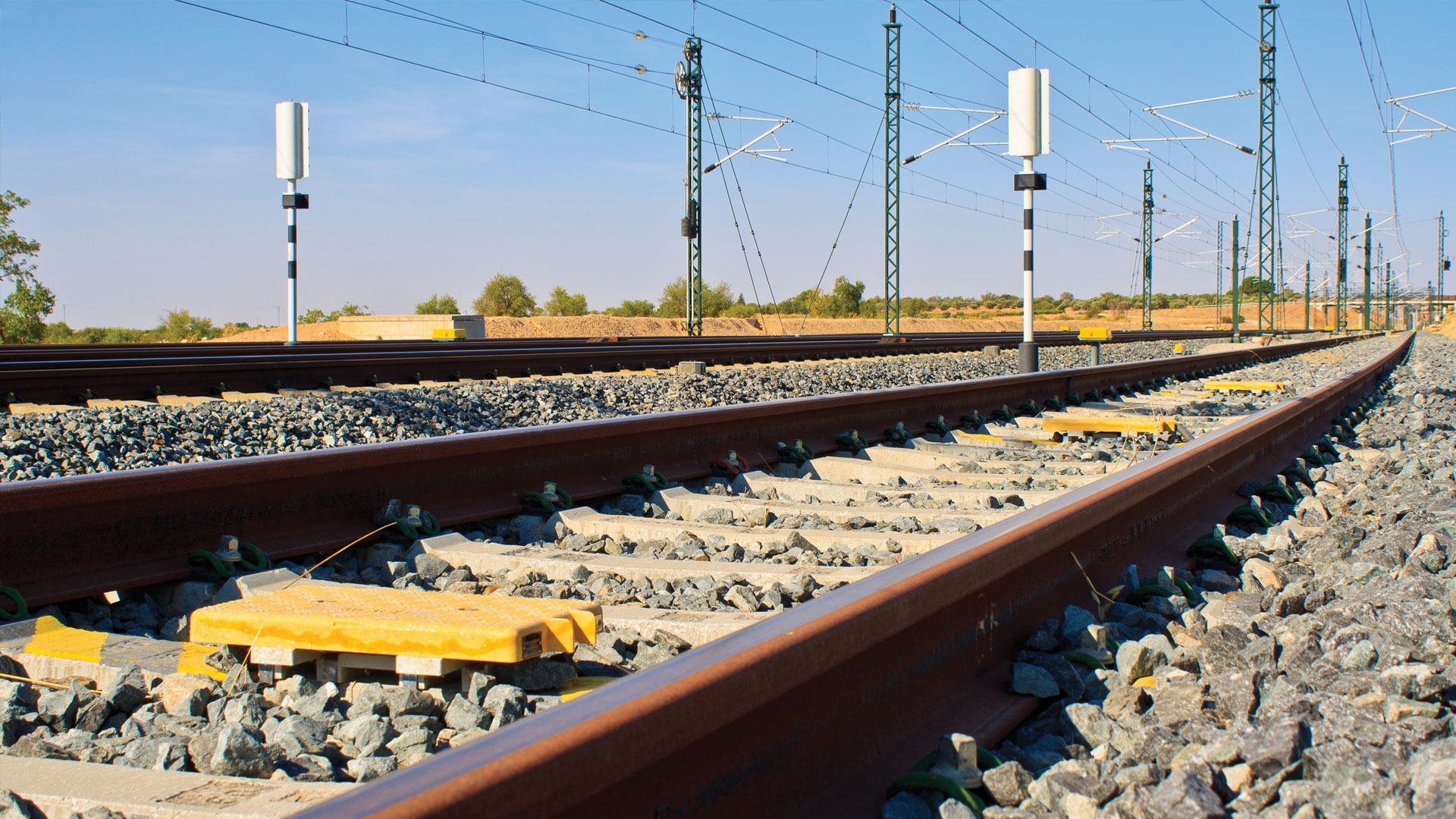

MSG 3U series is the ideal solution for a rack and panel solution. It can be installed on diverse signaling applications as TRU, ERTMS, TCMS and CBTC systems.
This range was designed to ensure a quick and secure mating / unmating with no risk of damaging the contacts. This function is performed by a lever with a safe locking ensuring a manual connection without any tools.
The 360° metal housing and the connector design ensure a proper EMI shielding and continuity with the PCB board. In addition the insert is made of high performance material certified to international fire and smoke requirements (EN 45545-2 / NFPA 130).
MSG 3U is available in 4 different layouts : 29 contacts / 41 contacts / 51 contacts / 5 Quadrax.
The 5 Quadrax layout offers Ethernet multiports with the possibility of different grounding structures by each port.
Technical Data
- Durability : 500 Mating cycles
- Shock & Vibration: According to EN 61373 Cat1b
- Operating temperature : -40°C to +100°C
- Salt spray : 48 hours
- Sealing level : IP40
- Fire smoke level : HL3/R22 & HL3/R23 following EN 45545-2 / NFPA 130 compliant (except 51 pos)
- Operating voltage : 300V max following EN 50-124-1 / OV2PD2
Examples of application field
MSG 3U series is compatible with all the 3U racks systems.
