Modular Junction blocks

8559 Series

Modular Junction Blocks

  • Flight proven
  • Standard qualified: NSA937901, EN3708, ABS1569
  • Versatile: sealed/unsealed, contact size 20 and 22
  • Easy to install on a mounting rail
  • RoHS compliant
  • Layouts using CAN bus technology available

Key features and benefits

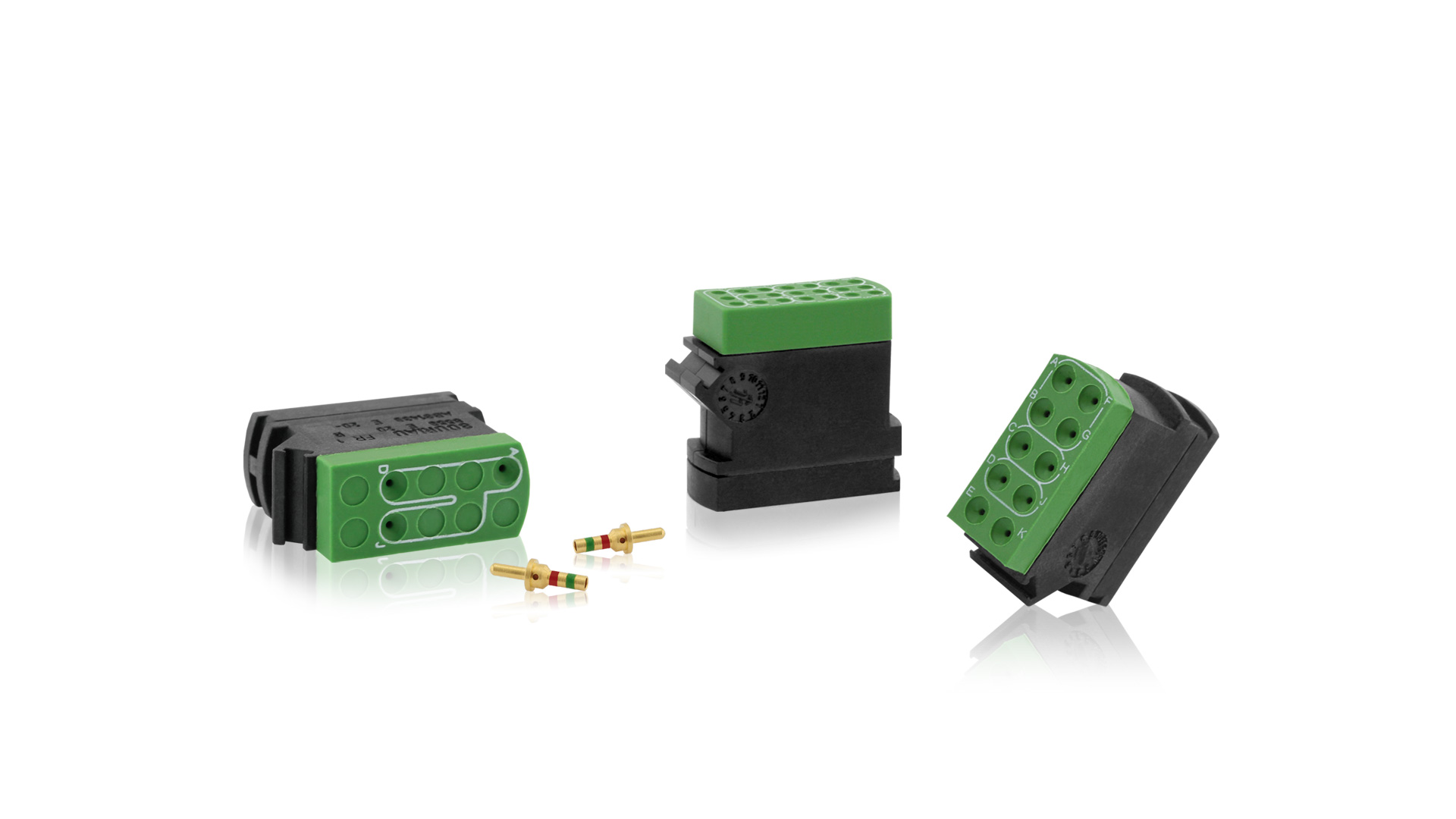

8559 terminal junctions consist of a rail profile support where termination modules with removable contacts may be stacked. Modules are retained in the extrusion by modules clamps at each end. These terminal junctions are very attractive for building interconnection combinations of variable and transformable composition under a compact geometry. This solution is well adapted to high-end intricate interconnections featuring a high-density cabling.

Their design ensures a high reliability level compatible with the most stringent environment conditions. Two types of modules are available depending on contact sizes: 21 contacts size 22 or 10 contacts size 20. The modules are developed in unsealed and sealed versions. An internal shunting of contacts by groups is provided for as shown in interconnection diagrams printed on the upper face of individual modules.

Examples of application field

Are you implementing complex electrical wiring systems in space-saving applications? The 8559 modules will make your job easier.
