- Push-Pull configuration enabling dense & recessed connections
- Safe and reliable sensitive locking system for blind mating
- High performance in vibrations and low disconnection force compared to existing solutions
- Design upon MIL-DTL-38999 system for maximum compatibility with 38999 standard accessories: same layouts, removable contacts, backshells, tooling
- Performances upon MIL-DTL-38999
Key features and benefits

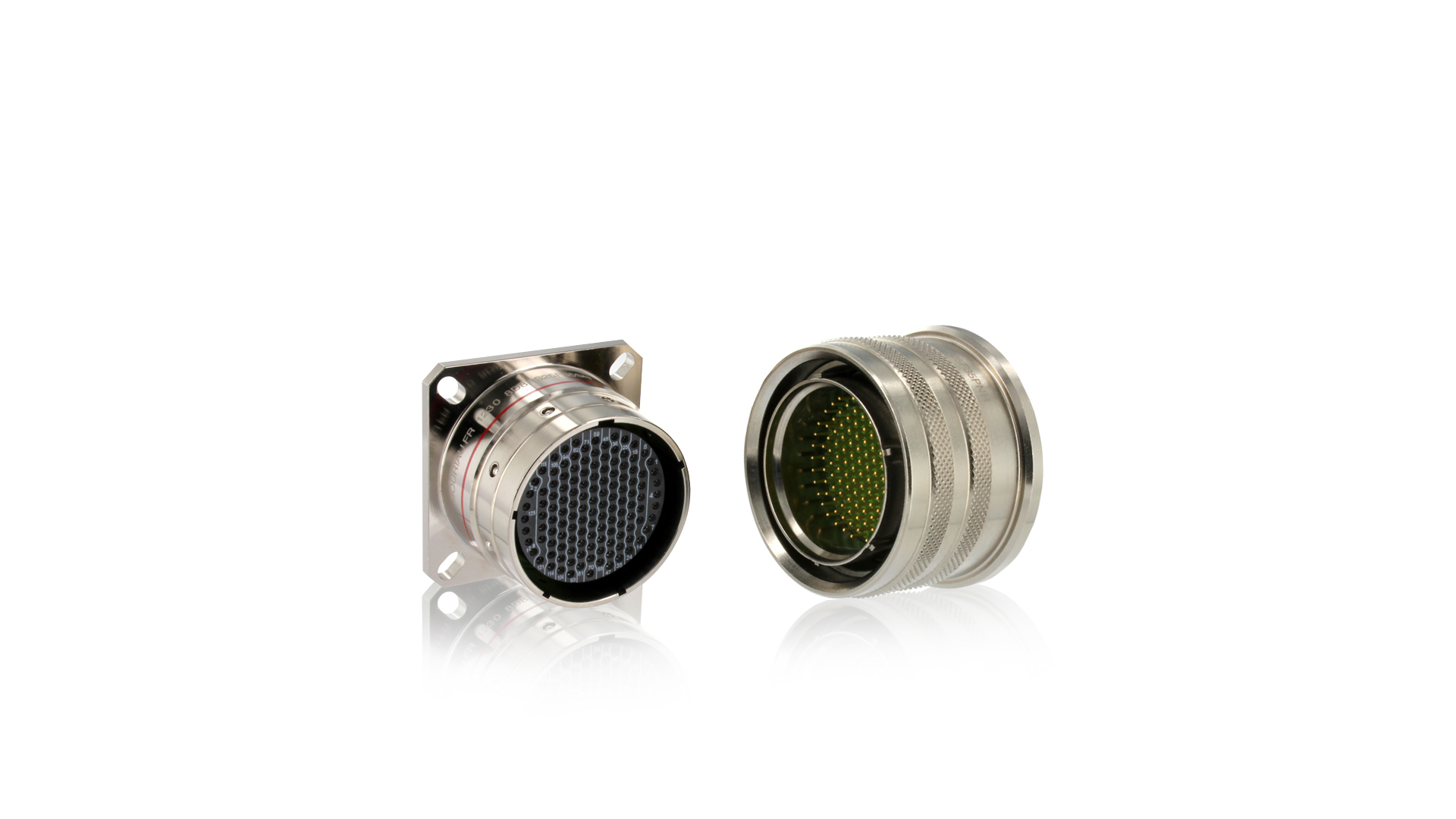

8D8 Series is a high performance blind mate push-pull interconnect solution based on MIL-DTL-38999 design.
- Operating Temperature: from -65°C to +200°C
- Sinusoidal vibration: 10-2000Hz, 20G (4h/axis)
- Random vibration: 20-2000Hz, 44g RMS (5’/axis)
- Shock: ±150g, 11 ms
- Salt spray: up to 500h (3 axes)
- Resistance to fluids: according to MIL-DTL-38999
- as per Standard MIL-DTL-38999 connectors
Examples of application field
Push-pull 8D8 connectors are interconnect solution based on MIL-DTL-38999 design.
