• Class 1E
  • RCC-E K2 qualified
  • Ruggedized series
  • For power and control devices
  • Ideal for reactor control & limitation system

Key features and benefits

Description

The MEN series is an RCC-E K2 qualified nuclear grade connector range with screw coupling mechanism. MEN connectors are extensively used in rod controls and drive mechanisms applications.

MEN connectors feature a reliable a durable cable clamp to ensure and secure heavy cables. IP68 rated, MEN connectors provide a high sealing level and a secure, reliable connection.

Technical Data

  • Un/Mating effort:  2,2 daN.m
  • Endurance: 500 mating / unmating
  • Shocks:
    • Operating basis earthquake (OBE): 3g ZPA
    • Safe shutdown earthquake (SSE): 6g ZPA
  • Vibration (Sine): 5g, 10 to 2000Hz
  • Operating temperature range:  -15 to +120°C (5 to 248°F)
  • Radiation: 25 MRads «gamma» at 70°C (158°F)
  • Salt spray resistance: 5% of sodium chloride
  • Sealing: 0,5MPa (IP68)

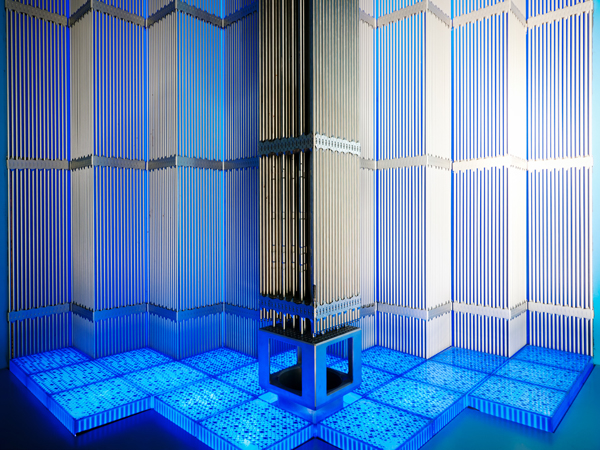

Examples of application field

MEN connectors are extensively used in rod controls and drive mechanisms applications.
