AM89 Series

AM89 Hermetic Series

  • Contacts size 20
  • Operating temperature: -55°C to +125°C
  • Hermeticity: 10-7 atm.cm3/s under helium
  • Extreme low leak rate
  • Rack and panel mating
  • Compact

Key features and benefits

Description

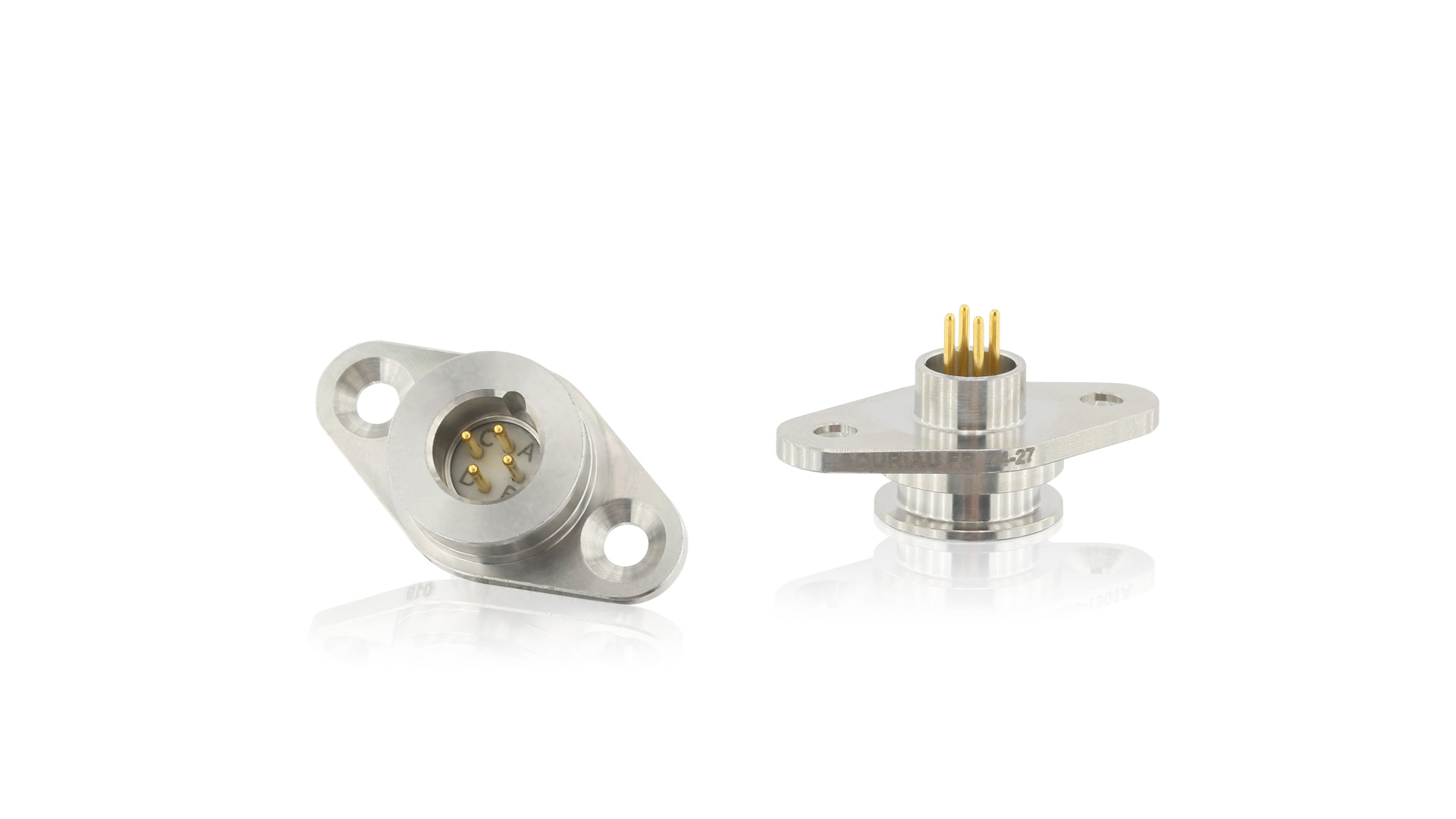

The AM89 series is a compact hermetic receptacle connector for rack and panel mating.

The AM89 hermetic receptacle connector is designed with stainless steel housing and rack and panel coupling interface which allow a very quick mating. AM89 hermetic receptacle connector is made of stainless steel housing to withstand harsh environment. The AM89 connector design allows use in tight space and easy integration in hydraulic systems like servo-valve.
