8STA Hermetic Series

8STA Hermetic Series

  • Low leak rate
  • Lightweight
  • Extremely compact (20% more compact than equivalent standard connector)
  • Quick coupling system
  • Customizable to any need
  • Derived from MIl-C-38999 standard
  • Operating temperature: -55°C to 175°C
  • Hermeticity: 10-7 atm.cm3/s under helium

Key features and benefits

Description

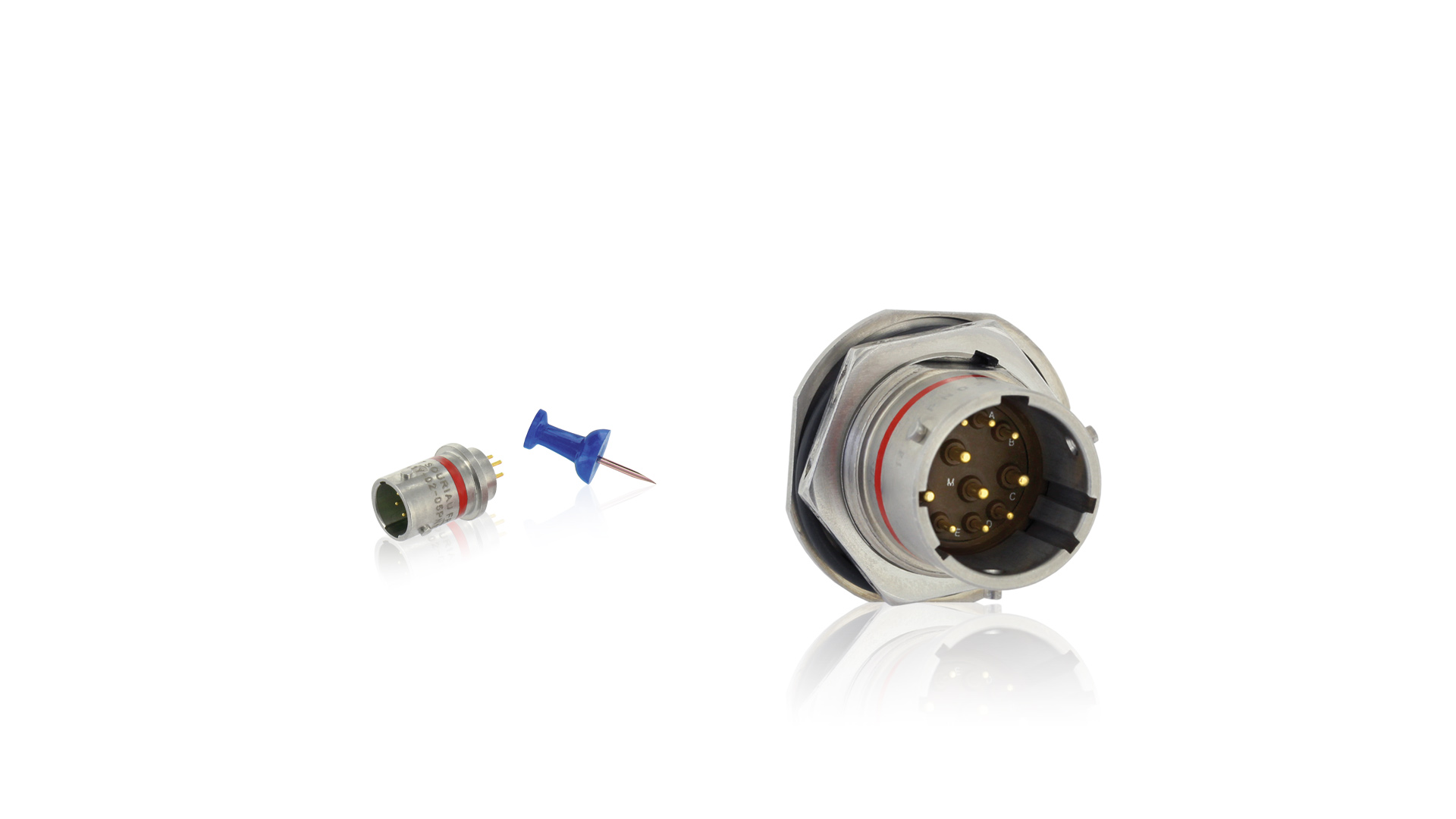

8STA hermetic receptacle connectors are designed with stainless steel housing and bayonet coupling interface which allow a quick mating

The 8STA hermetic series is based on 38999 standards bringing a 20% space saving and 20% lighter than traditional connector.

8STA hermetic receptacle connectors are available in solder flange for compactness and perfect hermeticity, in square flange configuration for a very easy installation and in jam-nut for a simple replacement.

The 8STA hermetic connector is made of stainless housing to withstand harsh environments.

Examples of application field

8STA hermetic connector are suited to withstand harsh environments.
