8533 Hermetic Series

8533 Hermetic Series

  • Extremely low leak rate
  • High temperature withstanding
  • Robust coupling system
  • Customizable to any need
  • Qualified according to EN2997 and ESC10
  • Operating temperature range: -55°C to +200°C/ -55°C to +260°C
  • Hermeticity: 10-7 atm.cm3/s under helium

Key features and benefits

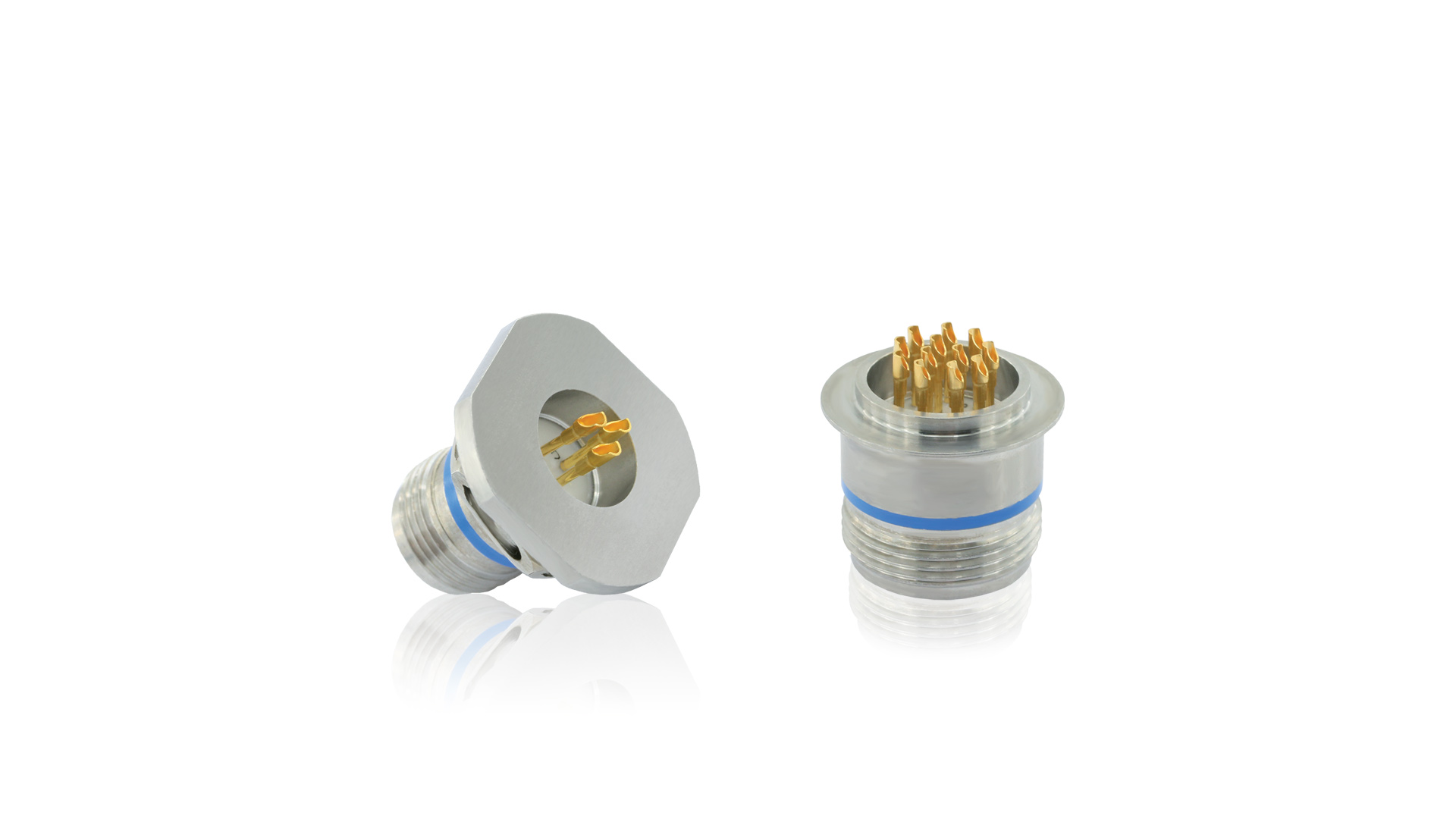

The 8533 series is a hermetic receptacle connector with thread coupling system according to EN2997 and ESC10 standards.

The hermetic receptacle connector with stainless steel housing and a thread coupling interface allow reliable mating for a long-term use in extreme conditions.

8533 connectors are available in solder flange for compactness and hermeticity, in square flange configuration for easy installation and in jam-nut for easy replacement.
