851 Hermetic Series

851 Hermetic Series

Mil-C-26482 series I - VG95328 - HE301

  • Extreme low leak rate
  • Quick mating
  • Customizable to any need
  • Compliant with Mil-C-26482 series I standard,  VG95328 and HE301
  • Compact
  • Operating temperature range: -55°C to +125°C
  • Hermeticity: 10-7 atm.cm3/s under helium

Key features and benefits

Description

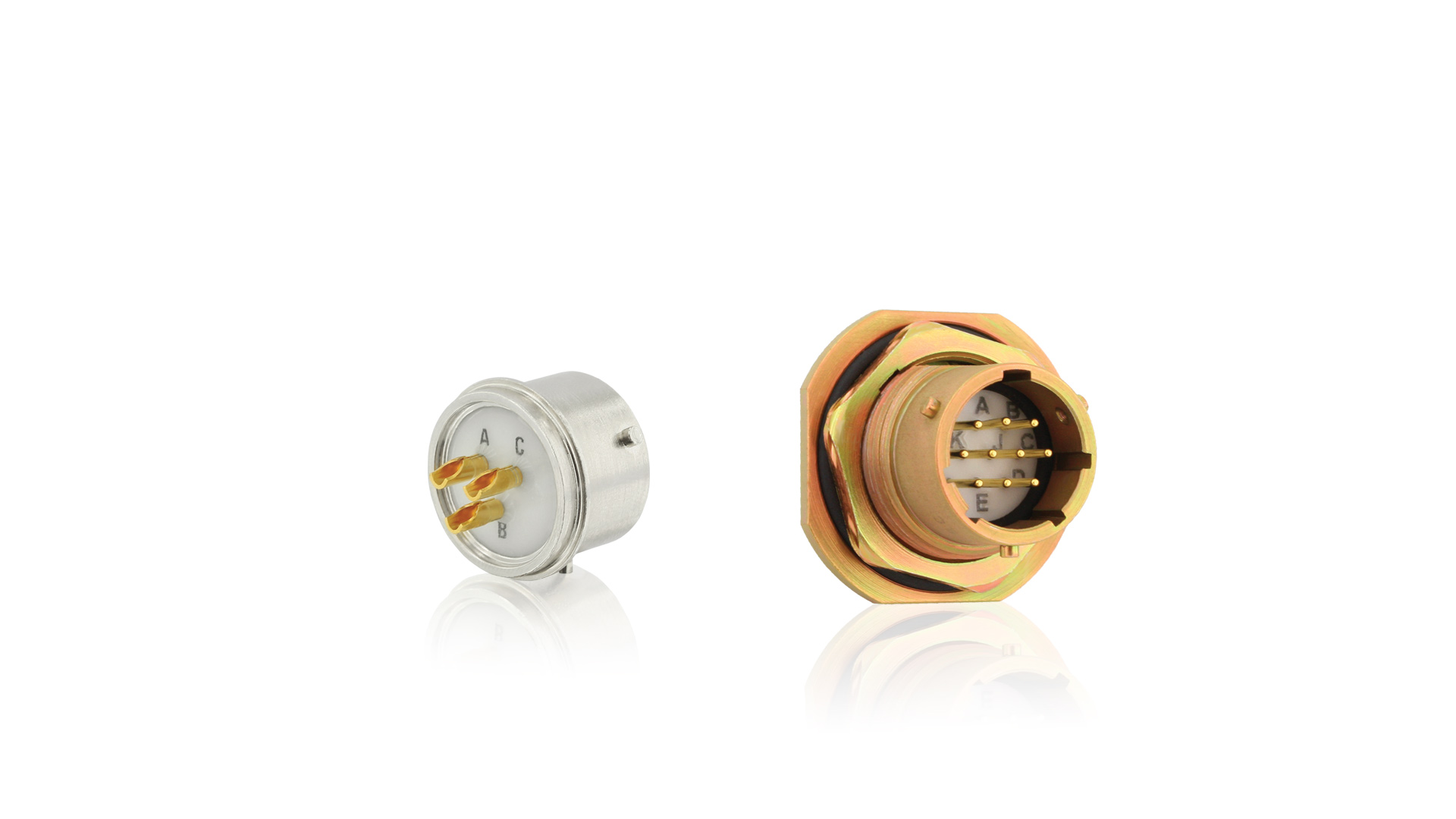

851 hermetic receptacle connectors are designed with steel housing and bayonet coupling interface which allow a very quick mating.

The connector is available in solder flange for compactness and perfect hermeticity, in square flange configuration for a very easy installation and in jam-nut for a simple replacement.

851 hermetic receptacle connectors are made of steel housing which can be cadmium plated or nickel plated to withstand harsh environment.

Based on the glass sealing technology, the 851 hermetic connector is 30% more compact than a traditional connector.
