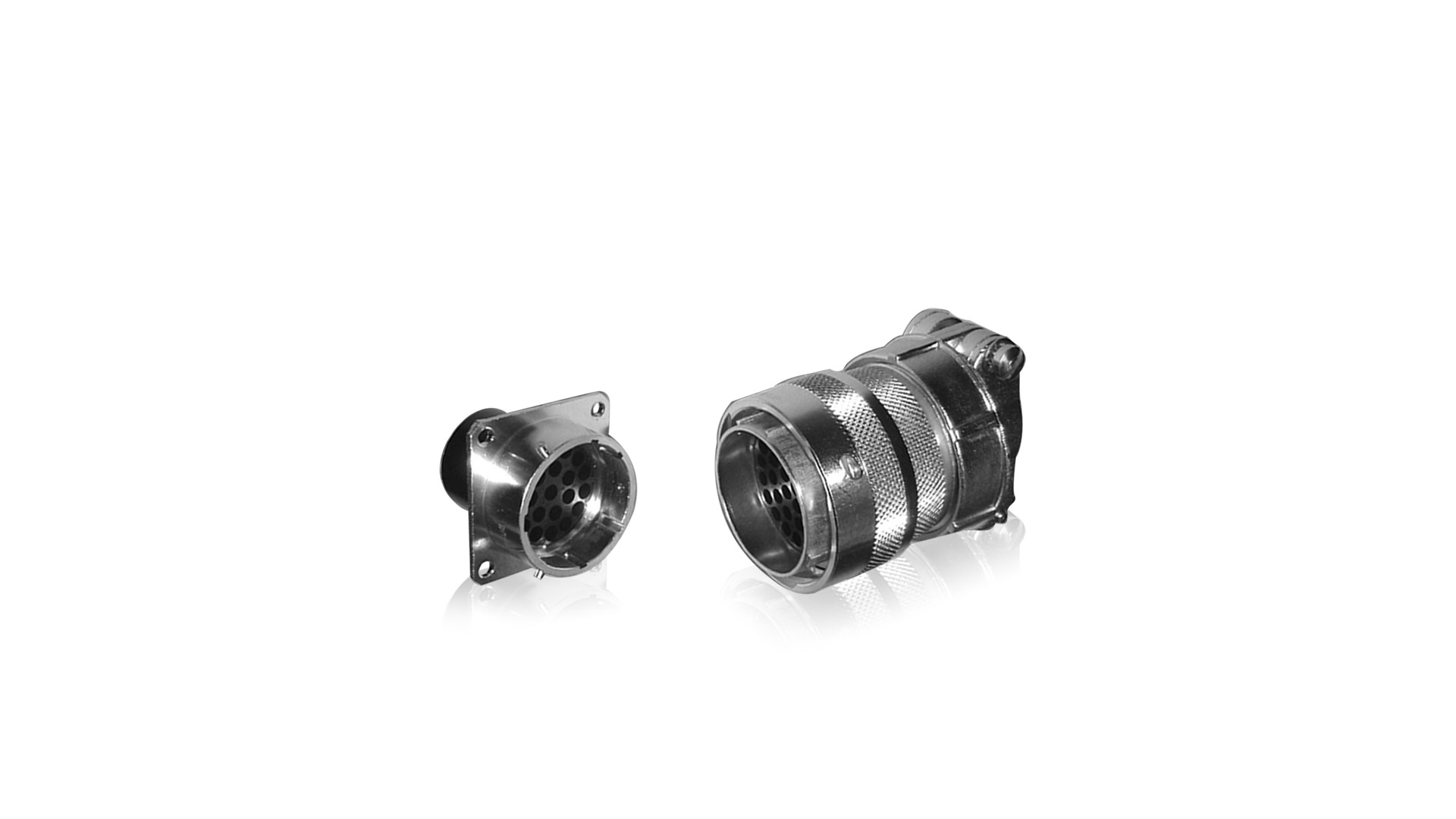

G series

Non-waterproof metal body circular connector

  • High vibration and shock resistant, suitable for indoor manufacturing facilities.
  • Connector shell : aluminum alloy.
  • Available in 48 contacts Max.
  • Various contact can be selected: gold or silver plating, coaxial contact and optical contact (size#16 contact only)

Key features and benefits


  • 8 type of shell size line up
  • Various combination of shell size and contact type enables the connector to fix various equipment
  • 5 points discrimination allow the connector to mate quickly and smoothly
  • Aluminum alloy body secure 500 mating cycles

Technical data

Operating temperature range; -55℃~+125℃
Insulation resistance: More than 5000MΩ
Dielectric Withstanding Voltage: A.C.2000V(1minute)
Durability: 500 matings and unmatings
Vibrations: MIL-STD-202 method 204
Storage temperature/humidity: MIL-STD-202 method 207
Dynamic salt spray: MIL-STD-202 method 101

Examples of application field

Available a wide range of fields such as general industry, research institute and railways
