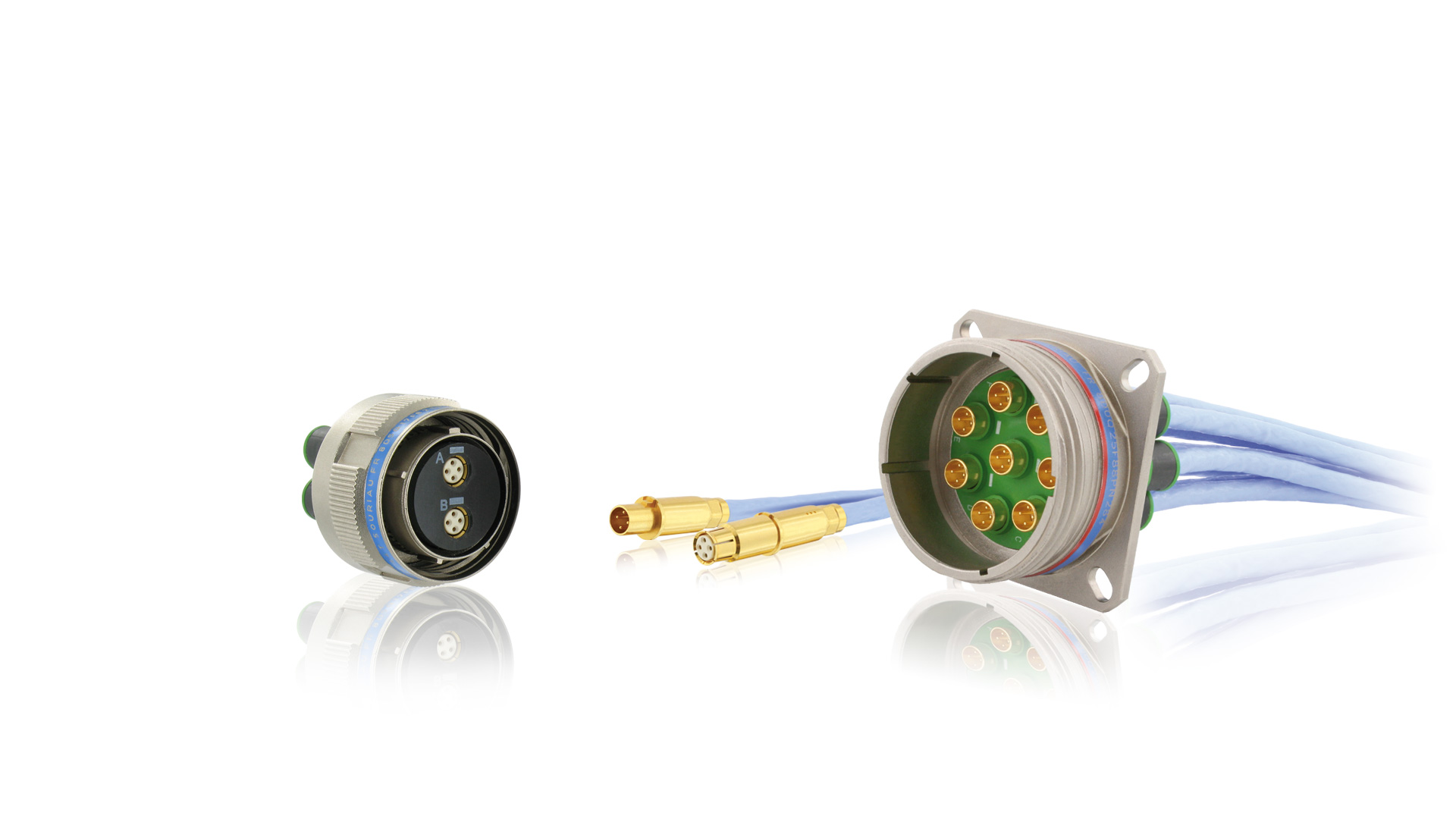

8D High Speed Series

8D High Speed Series

  • Quadrax contact (1 Gbit/s), BMA coaxial contact (18 Ghz) or Elio contact (multimode)
  • Compatible with #8 cavities
  • Contact protection
  • D38999/EN3645 interface compatible
  • Visual mating indication
  • EMI shielding
  • PCB Quadrax version available

Key features and benefits


The 8D series high speed connectors offer a large portfolio of high speed data transmission solutions, from copper to fiber optic contacts. 8D high speed connectors are suited to reach the best performance under high vibration, shock, high temperature and immersed condition without any signal interference.

Available in 5 high end materials and 5 platings, the 8D high speed series fit all the corrosion, shock, endurance or firewall capability you will encounter. The patented self-locking system and the metallic contact retention clip technology make the product perfect for high vibration applications or rough handling in the field.

8D high speed connectors offer concrete RoHS alternative to cadmium. Esterline Connection Technologies has more than 10 years of experience in producing Zn Ni with continuous improvements to comply with military and aerospace harsh environment conditions. Our Zn Ni connectors are the first one to be qualified by US Defense standards organization (DLA Land and Maritime). It provides the most cost effective solution for a cadmium alternative finish.
